B3F-6002
Tactile Switch, B3F Series, Top Actuated, Through Hole, Round Button, 150 gf, 50mA at 24VDC

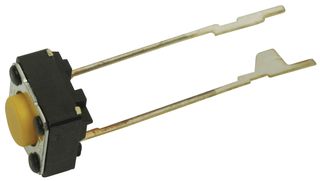

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoB3F-6002
Newark Part No.39P9780
Product RangeB3F Series
Technical Datasheet
17 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $0.571 |
| 10+ | $0.408 |
| 25+ | $0.386 |
| 50+ | $0.365 |
| 100+ | $0.343 |
| 250+ | $0.336 |
| 500+ | $0.330 |
| 1000+ | $0.298 |
Price for:Each
Minimum: 1
Multiple: 1
$0.57
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoB3F-6002
Newark Part No.39P9780
Product RangeB3F Series
Technical Datasheet
Product RangeB3F Series
Switch TerminalsThrough Hole
Actuator OrientationTop Actuated
Switch MountingThrough Hole
Contact Current Max50mA
Actuator StyleRound Button
Actuating Force150gf
Contact Voltage DC Nom24V
Operating Force1.47N
Contact Rating50mA at 24VDC
Switch Dimensions (L x W)6mm x 6mm
IP RatingIP00
IlluminationNon Illuminated
SVHCNo SVHC (27-Jun-2018)
Alternatives for B3F-6002
1 Product Found
Product Overview
The B3F series Through-hole Tactile Switch with SPST contact arrangement. Available in a wide range of models 6 x 6mm, 12 x 12mm, side-operated models, gold-plated contacts and radial tape. It offers extended mechanical/electrical durability 10 x 106 operations for 12 x 12mm type and 1 x 106 operations for the 6 x 6mm type.
- Extended mechanical/electrical durability 10 x 106 operations
- B32-series key tops mount to models with projected plungers
- -25 to 70°C Operating temperature range
- Taped radial type, vertical type and high force types are available
Applications
Industrial
Technical Specifications
Product Range
B3F Series
Actuator Orientation
Top Actuated
Contact Current Max
50mA
Actuating Force
150gf
Operating Force
1.47N
Switch Dimensions (L x W)
6mm x 6mm
Illumination
Non Illuminated
Switch Terminals
Through Hole
Switch Mounting
Through Hole
Actuator Style
Round Button
Contact Voltage DC Nom
24V
Contact Rating
50mA at 24VDC
IP Rating
IP00
SVHC
No SVHC (27-Jun-2018)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2018)
