V-10G2-1C25-K
Microswitch, Snap Action, Hinge Lever, SPDT, Quick Connect, 10 A, 250 VDC

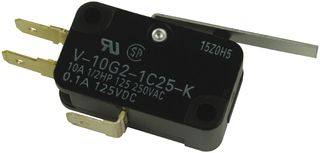

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoV-10G2-1C25-K
Newark Part No.89C8151
Product RangeV Series
Technical Datasheet
32 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.000 |
| 10+ | $2.760 |
| 25+ | $2.760 |
| 50+ | $2.760 |
| 100+ | $2.570 |
| 250+ | $2.400 |
| 500+ | $2.400 |
Price for:Each
Minimum: 1
Multiple: 1
$3.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoV-10G2-1C25-K
Newark Part No.89C8151
Product RangeV Series
Technical Datasheet
Microswitch TypeSnap Action
Microswitch ActuatorHinge Lever
Contact ConfigurationSPDT
Switch TerminalsQuick Connect
Contact Current Max10A
Contact Voltage DC Nom250VDC
Product RangeV Series
Contact Voltage AC Nom250VAC
Operating Force Max200gf
SVHCNo SVHC (27-Jun-2018)
Product Overview
The V-10G2-1C25-K is a single-pole double-throw (SPDT) general purpose Snap Action Switch with hinge lever actuator and #187 quick-connect bottom terminals. The V series safety interlock switch features rivet silver contact and 0.5mm (G gap) contact gap.
- 100MΩ at 500VDC Minimum insulation resistance
- 15mΩ Maximum contact resistance
- 1000VAC Dielectric strength
- 1000m/s² Maximum durability shock resistance
- 200m/s² Maximum malfunction shock resistance
- 50000000 operations Minimum mechanical life expectancy
- 300000 operations Minimum life expectancy
- IP40 Protection rating
Applications
Industrial
Technical Specifications
Microswitch Type
Snap Action
Contact Configuration
SPDT
Contact Current Max
10A
Product Range
V Series
Operating Force Max
200gf
Microswitch Actuator
Hinge Lever
Switch Terminals
Quick Connect
Contact Voltage DC Nom
250VDC
Contact Voltage AC Nom
250VAC
SVHC
No SVHC (27-Jun-2018)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2018)
