Z-15GW-B

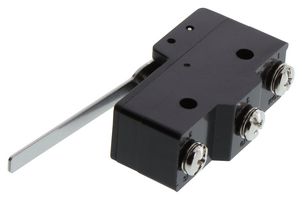

Microswitch, Snap Action, Hinge Lever, SPDT, Screw, 15 A, 250 V
Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoZ-15GW-B
Newark Part No.52F3668
Product RangeZ Series
Technical Datasheet
1,564 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $22.080 |
| 5+ | $20.380 |
| 10+ | $18.900 |
| 25+ | $17.210 |
| 50+ | $15.940 |
Price for:Each
Minimum: 1
Multiple: 1
$22.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoZ-15GW-B
Newark Part No.52F3668
Product RangeZ Series
Technical Datasheet
Microswitch TypeSnap Action
Microswitch ActuatorHinge Lever
Contact ConfigurationSPDT
Switch TerminalsScrew
Contact Current Max15A
Contact Voltage DC Nom250V
Product RangeZ Series
Contact Voltage AC Nom250V
Operating Force Max70gf
SVHCTo Be Advised
Product Overview
Z-15GW-B is a Z series general-purpose basic switch.
- 0.5mm (standard) contact gap
- Large switching capacity of 15A with high repeat accuracy
- Hinge lever actuator type, low OP contact terminal
- 0.69N max operating force, 0.14N min radio frequency
- Screw terminal (with toothed washer)
- 15A max contact current, 14VDC nominal contact voltage
- 250VAC nominal contact voltage
- Operating speed range from 1mm to 1m/s, 100Mohm min insulation resistance at 500VDC
- IP00 rating, silver contact material, rivet shape
- Ambient operating temperature range from -25°C to 80°C
