J112-D26Z
JFET Transistor, -35 V, -5 V, TO-226AA, 3 Pin, 150 °C

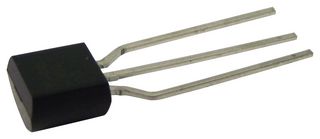

Image is for illustrative purposes only. Please refer to product description.
6,760 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.573 |
| 10+ | $0.322 |
| 25+ | $0.275 |
| 50+ | $0.227 |
| 100+ | $0.181 |
| 250+ | $0.174 |
Price for:Each (Supplied on Cut Tape)
Minimum: 5
Multiple: 5
$2.86
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoJ112-D26Z
Newark Part No.31Y2106
Technical Datasheet
Gate Source Breakdown Voltage Max-35V
Breakdown Voltage Vbr-35V
Zero Gate Voltage Drain Current Idss Min5mA
Zero Gate Voltage Drain Current Max-
Gate Source Cutoff Voltage Max-5V
Transistor Case StyleTO-226AA
No. of Pins3 Pin
Operating Temperature Max150°C
Transistor TypeJFET
Channel TypeN Channel
Transistor MountingThrough Hole
Product Range-
Qualification-
MSL-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The J112_D26Z is a N-channel JFET Switch designed for low level analogue switching, sample and holds circuits, chopper stabilized amplifiers.
- 35V Drain-gate voltage
- -35V Gate-source voltage
- 50mA Forward gate current
Technical Specifications
Gate Source Breakdown Voltage Max
-35V
Zero Gate Voltage Drain Current Idss Min
5mA
Gate Source Cutoff Voltage Max
-5V
No. of Pins
3 Pin
Transistor Type
JFET
Transistor Mounting
Through Hole
Qualification
-
SVHC
No SVHC (27-Jun-2024)
Breakdown Voltage Vbr
-35V
Zero Gate Voltage Drain Current Max
-
Transistor Case Style
TO-226AA
Operating Temperature Max
150°C
Channel Type
N Channel
Product Range
-
MSL
-
Technical Docs (2)
Alternatives for J112-D26Z
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
