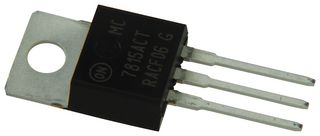

MC7815ACTG
Linear Voltage Regulator, 7815, Fixed, 23V To 35V In, 15V And 1A Out, TO-220-3
Need more?
| Quantity | Price |
|---|---|
| 1+ | $0.371 |
| 10+ | $0.340 |
| 100+ | $0.314 |
| 500+ | $0.314 |
| 1000+ | $0.314 |
| 2500+ | $0.314 |
| 10000+ | $0.314 |
Product Information
Product Overview
The MC7815ACTG is a Positive Voltage Regulator, monolithic integrated circuit is designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. This regulator employ internal current limiting, thermal shutdown and safe-area compensation. With adequate heat sinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
- No external components required
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output transistor safe-area compensation
Applications
Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device.
Technical Specifications
Fixed
-
-
15V
-
35V
7815 Voltage Regulators
1A
TO-220
Through Hole
125°C
MSL 1 - Unlimited
15V
1Outputs
15V
-
23V
1A
1A
TO-220
3Pins
0°C
-
Lead
