MC7818CTG

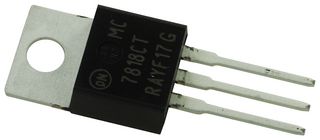

Linear Voltage Regulator, 7818, Fixed, Positive, 20V To 35V In, 18V And 1A Out, TO-220-3
Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part NoMC7818CTG
Newark Part No.45J1452
Product Range7818 Voltage Regulators
Technical Datasheet
593 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.242 |
| 10+ | $0.242 |
| 100+ | $0.242 |
| 500+ | $0.242 |
| 1000+ | $0.242 |
| 2500+ | $0.242 |
Price for:Each
Minimum: 1
Multiple: 1
$0.24
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoMC7818CTG
Newark Part No.45J1452
Product Range7818 Voltage Regulators
Technical Datasheet
Output TypeFixed
Fixed Output Voltage Nom18V
Adjustable Output Voltage Min-
Output Voltage - Nom18V
Adjustable Output Voltage Max-
Output Voltage Nom18V
Output Voltage Min-
Output Voltage Max-
Input Voltage Min27V
Input Voltage Max35V
Output Current1A
Product Range7818 Voltage Regulators
Max Output Current1A
Linear Regulator Case Style-
Output Current Max1A
IC Case / Package-
No. of Pins3Pins
Operating Temperature Min0°C
Operating Temperature Max125°C
Qualification-
MSL-
SVHCLead
Product Overview
The MC7818CTG is a monolithic Positive Voltage Regulator with 18V nominal voltage. It is designed as fixed-voltage regulator for a wide variety of applications including local, on-card regulation. This regulator employs internal current limiting, thermal shutdown and safe-area compensation. With adequate heat-sinking it can deliver output currents in excess of 1A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
