EVPAEDB2A

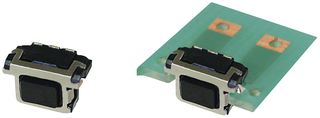

Tactile Switch, EVPAE Series, Side Actuated, Edge Mount, Rectangular Button, 300 gf
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANASONIC
Manufacturer Part NoEVPAEDB2A
Newark Part No.52W2452
Product RangeEVPAE Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
| Quantity | Price |
|---|---|
| 1000+ | $0.656 |
Price for:Each
Minimum: 3500
Multiple: 3500
$2,296.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPANASONIC
Manufacturer Part NoEVPAEDB2A
Newark Part No.52W2452
Product RangeEVPAE Series
Technical Datasheet
Switch TerminalsSolder
Product RangeEVPAE Series
Actuator OrientationSide Actuated
Switch MountingEdge Mount
Actuator StyleRectangular Button
Contact Current Max20mA
Contact Voltage DC Nom15V
Actuating Force300gf
Contact Rating20mA at 15VDC
Operating Force1.6N
Switch Dimensions (L x W)4.5mm x 2.2mm
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Switch Terminals
Solder
Actuator Orientation
Side Actuated
Actuator Style
Rectangular Button
Contact Voltage DC Nom
15V
Contact Rating
20mA at 15VDC
Switch Dimensions (L x W)
4.5mm x 2.2mm
Product Range
EVPAE Series
Switch Mounting
Edge Mount
Contact Current Max
20mA
Actuating Force
300gf
Operating Force
1.6N
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
