Print Page
F1X2WH6

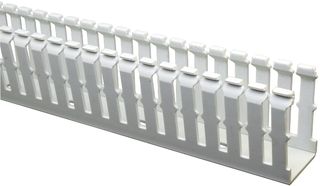

Raceway Duct, Narrow Slot Base, 2.12 " (H) x 1.25 " (W) x 6 ft (L), White, PVC, Panduct Type F
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANDUIT
Manufacturer Part NoF1X2WH6
Newark Part No.99B0763
Product RangePanduct Series
Also Known AsGTIN UPC EAN: 07498337510
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $8.100 |
| 60+ | $7.880 |
| 150+ | $7.660 |
| 300+ | $7.430 |
| 600+ | $7.210 |
| 3000+ | $6.950 |
Price for:1 Foot
Minimum: 6
Multiple: 6
$48.60
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPANDUIT
Manufacturer Part NoF1X2WH6
Newark Part No.99B0763
Product RangePanduct Series
Also Known AsGTIN UPC EAN: 07498337510
Technical Datasheet
External Height - Metric53.8mm
External Width - Metric31.8mm
Length - Metric1.83m
External Height - Imperial2.12"
Raceway / Duct ColorWhite
Raceway / Duct MaterialPVC (Polyvinylchloride)
External Width - Imperial1.25"
Length - Imperial6ft
Product RangePanduct Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Panduct® lead-free PVC narrow slot wiring duct
- Narrow slot/finger design that closely matches the spacing of high-density components
- Upper and lower scorelines allow for easy finger/sidewall section removal
- UL 94 flammability rating of V-0
- UL recognized continuous-use temperature up to 122°F (50°C)
- Double restricted slot design for retaining wires, eliminating hassle and saving time
Technical Specifications
External Height - Metric
53.8mm
Length - Metric
1.83m
Raceway / Duct Color
White
External Width - Imperial
1.25"
Product Range
Panduct Series
External Width - Metric
31.8mm
External Height - Imperial
2.12"
Raceway / Duct Material
PVC (Polyvinylchloride)
Length - Imperial
6ft
SVHC
No SVHC (21-Jan-2025)
Technical Docs (3)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
