2202552
PCB, BREADBOARD, SOLDERLESS

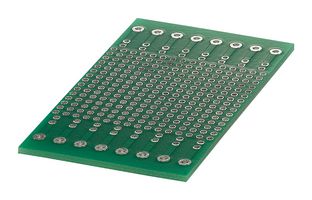

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part No2202552
Newark Part No.52Y1247
Your Part Number
Technical Datasheet
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $14.400 |
| 10+ | $13.890 |
| 50+ | $13.100 |
| 100+ | $12.140 |
| 250+ | $11.380 |
| 500+ | $10.840 |
| 1000+ | $10.280 |
Price for:Each
Minimum: 1
Multiple: 1
$14.40
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part No2202552
Newark Part No.52Y1247
Technical Datasheet
Board TypeBreadboard / Solderless
Board Material-
Hole Diameter-
External Height-
External Width-
Board Thickness-
SVHCNo SVHC (25-Jun-2025)
Product Overview
PCB - EH 45F/16 DEV-PCB is a perfboard for the EH 45 FLAT DEV-KIT for MKDS-5,08 terminal blocks suitable for manual soldering.
- Hole matrix PCB for self-assembly
- Hole matrix dimension 2.54mm
- Easy installation
- FR 4-21 housing material
- Ambient temperature (operation) is 110°C
Contents
DEV-KIT EH 45 FLAT contains 1 x EH 45 FLAT housing and PCB terminal blocks (MKDS ... 5,08), supplied in individual parts.
Technical Specifications
Board Type
Breadboard / Solderless
Hole Diameter
-
External Width
-
SVHC
No SVHC (25-Jun-2025)
Board Material
-
External Height
-
Board Thickness
-
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
