MSTBVA 2,5/10-G-5,08
Terminal Block, Header, 5.08 mm, 10 Positions, 12 A, 320 V, Through Hole Vertical

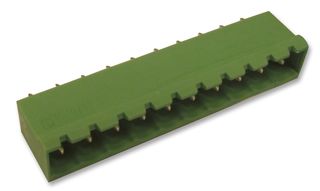

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part NoMSTBVA 2,5/10-G-5,08
Newark Part No.71C4150
Product RangeMSTBVA
Also Known As1755817, GTIN UPC EAN: 4017918029395
Technical Datasheet
657 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.830 |
| 10+ | $4.640 |
| 50+ | $4.410 |
| 100+ | $4.080 |
| 250+ | $3.790 |
| 500+ | $3.610 |
| 1000+ | $3.420 |
Price for:Each
Minimum: 1
Multiple: 1
$4.83
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part NoMSTBVA 2,5/10-G-5,08
Newark Part No.71C4150
Product RangeMSTBVA
Also Known As1755817, GTIN UPC EAN: 4017918029395
Technical Datasheet
GenderHeader
Pitch Spacing5.08mm
No. of Positions10Positions
Rated Current12A
Rated Voltage320V
Block OrientationThrough Hole Vertical
Product RangeMSTBVA
SVHCNo SVHC (21-Jan-2025)
Product Overview
The MSTBVA 2,5/10-G-5,08 is a 10-position green base strip PCB Header with tin-plated solder contacts and a polyamide insulator. This 1755817 PCB header is suitable for through-hole mounting. Standard pin strip for 320V (III/2).
- Plug-in direction parallel and vertical to the PCB
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
Gender
Header
No. of Positions
10Positions
Rated Voltage
320V
Product Range
MSTBVA
Pitch Spacing
5.08mm
Rated Current
12A
Block Orientation
Through Hole Vertical
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Alternatives for MSTBVA 2,5/10-G-5,08
1 Product Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
