4899-6

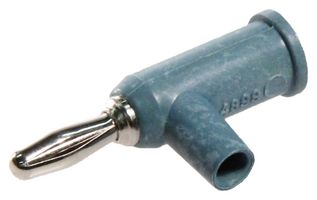

Banana Test Connector, Plug, Cable Mount, 15 A, 5 kV, Nickel Plated Contacts, Blue
Image is for illustrative purposes only. Please refer to product description.
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $34.170 |
| 5+ | $31.610 |
| 10+ | $30.510 |
| 25+ | $29.400 |
| 50+ | $28.300 |
| 100+ | $27.570 |
Price for:Pack of 10
Minimum: 1
Multiple: 1
$34.17
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPOMONA
Manufacturer Part No4899-6
Newark Part No.96B4886
Technical Datasheet
Connector MountingCable Mount
Current Rating15A
Voltage Rating5kV
Contact PlatingNickel Plated Contacts
Connector ColourBlue
Contact MaterialBrass
Contact Termination TypeScrew
Product Range-
Product Overview
The 4899-6 is a blue solderless and stackable Standard Banana Plug designed to fit on the end of any 22 to 18AWG wire. It is made of nickel-plated brass with nickel-plated beryllium copper spring and a high temperature polyphenylene sulphide insulator. It is available with tarnish resistant nickel or gold plating for very low contact resistance. The cross-hole wire entry fits wires up to 0.12-inch diameter. The set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver. It also fits standard panel and binding post banana jacks 0.161 to 0.166-inch diameter.
- 150°C Temperature rating
Applications
Industrial
Technical Specifications
Gender
Plug
Current Rating
15A
Contact Plating
Nickel Plated Contacts
Contact Material
Brass
Product Range
-
Connector Mounting
Cable Mount
Voltage Rating
5kV
Connector Colour
Blue
Contact Termination Type
Screw
SVHC
No SVHC (15-Jun-2015)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
