RDK-399
Reference Design Board, 12W Power Supply

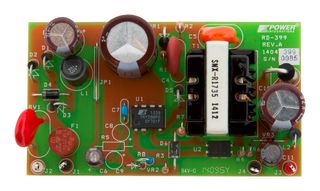

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 27 week(s)
Product Information
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-399
Newark Part No.75Y2833
Technical Datasheet
Silicon ManufacturerPower Integrations
Silicon Core NumberTNY288PG
Kit Application TypePower Management - Voltage Regulator
Application Sub TypeFlyback Converter
Core Architecture-
Core Sub-Architecture-
Silicon Family NameTinySwitch-4
Product Range-
Product Overview
- Reference design board for a 12W power supply using TinySwitch™ -4 TNY288PG
- 85VAC to 265VAC input, 12V, 1A output
- TinySwitch-4 reference design
Technical Specifications
Silicon Manufacturer
Power Integrations
Kit Application Type
Power Management - Voltage Regulator
Core Architecture
-
Silicon Family Name
TinySwitch-4
Product Range
-
Silicon Core Number
TNY288PG
Application Sub Type
Flyback Converter
Core Sub-Architecture
-
Kit Contents
Ref Design Board TNY288PG, TNY288PG IC, Documentation
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
