AT-3045-TF-LW110-R
Transducer, 97 dBA, 4.5 kHz, Flanged, 18 nF

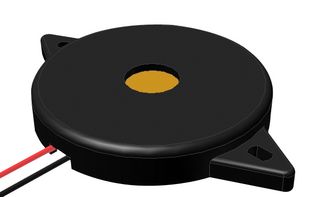

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPUI AUDIO
Manufacturer Part NoAT-3045-TF-LW110-R
Newark Part No.02AM8705
Technical Datasheet
30 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.280 |
| 10+ | $1.910 |
| 25+ | $1.780 |
| 50+ | $1.660 |
| 100+ | $1.500 |
| 500+ | $1.370 |
| 1000+ | $1.220 |
| 2500+ | $1.120 |
Price for:Each
Minimum: 1
Multiple: 1
$2.28
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPUI AUDIO
Manufacturer Part NoAT-3045-TF-LW110-R
Newark Part No.02AM8705
Technical Datasheet
Transducer FunctionBuzzer
Tones-
Supply Voltage Min1VDC
Sound Pressure Level (SPL)97dBA
Resonant Frequency4.5kHz
Supply Voltage Max50VDC
Operating Current Max11mA
Transducer MountingPanel Mount
Drive CircuitExternal
Sound Level Distance100mm
Capacitance18nF
Lead Wire28AWG
IP Rating-
IP Rating-
Housing MaterialABS (Acrylonitrile Butadiene Styrene)
Operating Voltage Range1V p-p to 50V p-p
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Transducer Function
Buzzer
Supply Voltage Min
1VDC
Resonant Frequency
4.5kHz
Operating Current Max
11mA
Drive Circuit
External
Capacitance
18nF
IP Rating
-
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-30°C
Product Range
-
Tones
-
Sound Pressure Level (SPL)
97dBA
Supply Voltage Max
50VDC
Transducer Mounting
Panel Mount
Sound Level Distance
100mm
Lead Wire
28AWG
IP Rating
-
Operating Voltage Range
1V p-p to 50V p-p
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
