D-181-1224-90/9
Solder Sleeve, with Lead, Terminator, 3.7 mm, Blue (Transparent), PVDF (Polyvinylidene Fluoride)

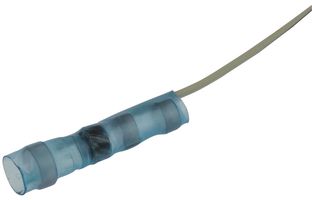

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoD-181-1224-90/9
Newark Part No.45J3954
Product RangeD Series
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $8.730 |
| 10+ | $5.940 |
| 25+ | $5.860 |
| 50+ | $5.780 |
| 100+ | $5.710 |
Price for:Each
Minimum: 1
Multiple: 1
$8.73
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoD-181-1224-90/9
Newark Part No.45J3954
Product RangeD Series
Connector TypeTerminator
Internal Diameter3.7mm
Insulator ColourBlue (Transparent)
Insulator MaterialPVDF (Polyvinylidene Fluoride)
Insulator Length21.5mm
Wire Gauge24AWG
Product RangeD Series
SVHCLead
Product Overview
The D-181-1224-90/9 is a 3.7mm SolderSleeve Coax Terminator with heat shrink radiation-cross-linked polyvinylidene fluoride insulation sleeve, fluorocarbon-based thermoplastic meltable rings, pre-installed lead and Sn63 solder termination. This D-181 series terminator for use in terminating the silver/tin conductor and shield plating of a coaxial cable and temperature of cable rated for at least 125°C.
- White/white with black stripe lead color
- Stranded lead
- 24AWG Pre-installed lead wire size
- Immersion protection resistance
- 150°C Operating temperature
Applications
Industrial
Technical Specifications
Connector Type
Terminator
Insulator Colour
Blue (Transparent)
Insulator Length
21.5mm
Product Range
D Series
Internal Diameter
3.7mm
Insulator Material
PVDF (Polyvinylidene Fluoride)
Wire Gauge
24AWG
SVHC
Lead
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Lead
