HRHF-125FR-10/226
Adhesive Lined Heat Shrink Tubing, High Shrink Ratio, 5.6:1, 1.25 ", 31.75 mm, Black, 10 ", 254 mm

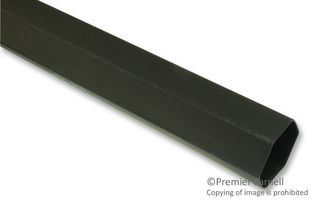

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoHRHF-125FR-10/226
Newark Part No.82K9733
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 40 week(s)
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoHRHF-125FR-10/226
Newark Part No.82K9733
Technical Datasheet
Shrink Ratio5.6:1
I.D. Supplied - Imperial1.25"
I.D. Supplied - Metric31.75mm
Shrink Tubing / Boot ColourBlack
Length - Imperial10"
Length - Metric254mm
I.D. Recovered Max - Imperial0.24"
I.D. Recovered Max - Metric6.1mm
Shrink Tubing / Boot MaterialPO (Polyolefin)
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The HRHF-125FR-10/226 is a High-ratio (HR) Heat Shrinkable Tubing designed to accommodate large size differences between cables and cable connectors and backshells, thus simplifying repair of damaged cable. The waterproofing sealant provides environmental sealing and is watertight in wet and corrosive locations. The CB5106-000 heat shrinkable tubing made of irradiated modified polyolefin.
- Offers toughness and durability
- Provides excellent insulation and abrasion protection
- Flame-retardant
Applications
Industrial, Maintenance & Repair
Technical Specifications
Shrink Ratio
5.6:1
I.D. Supplied - Metric
31.75mm
Length - Imperial
10"
I.D. Recovered Max - Imperial
0.24"
Shrink Tubing / Boot Material
PO (Polyolefin)
SVHC
No SVHC (17-Jan-2022)
I.D. Supplied - Imperial
1.25"
Shrink Tubing / Boot Colour
Black
Length - Metric
254mm
I.D. Recovered Max - Metric
6.1mm
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
