CUB5PB00
Digital Panel Meter, Process, 5 Digits, DC Current, DC Voltage, 9 Vdc to 28 Vdc, Backlight

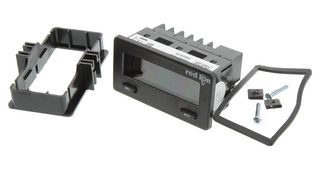

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRED LION
Manufacturer Part NoCUB5PB00
Newark Part No.28M8526
Product RangeCUB5 Series
Technical Datasheet
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $228.960 |
Price for:Each
Minimum: 1
Multiple: 1
$228.96
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRED LION
Manufacturer Part NoCUB5PB00
Newark Part No.28M8526
Product RangeCUB5 Series
Technical Datasheet
No. of Digits / Alpha5
Meter FunctionDC Current / DC Voltage
Meter Range-
Digit Height12.2mm
Panel Cutout Height33mm
Panel Cutout Width68mm
Supply Voltage Min9VDC
Supply Voltage Max28VDC
Operating Temperature Min-35°C
Operating Temperature Max75°C
Product RangeCUB5 Series
SVHCNo SVHC (08-Jul-2021)
Product Overview
The CUB5PB00 is a Miniature Electronic Process Meter with backlight display provides the user the ultimate in flexibility, from its complete user programming to the optional set point control and communication capability. The CUB5 accepts a DC voltage or current input signal and provides a display in the desired unit of measure. The meter also features minimum and maximum display capture, display offset, units indicator and programmable user input. The display can be toggled either manually or automatically between the selected displays.
- 5-digit LCD display
- Operates from 9 to 28VDC power source
- Display color change capability at setpoint output
- NEMA 4X/IP65 sealed front bezel
- -35 to 75°C Temperature range
Applications
Industrial, Automation & Process Control, Test & Measurement
Technical Specifications
No. of Digits / Alpha
5
Meter Range
-
Panel Cutout Height
33mm
Supply Voltage Min
9VDC
Operating Temperature Min
-35°C
Product Range
CUB5 Series
Meter Function
DC Current / DC Voltage
Digit Height
12.2mm
Panel Cutout Width
68mm
Supply Voltage Max
28VDC
Operating Temperature Max
75°C
SVHC
No SVHC (08-Jul-2021)
