CUB7CCS0
Counter, Miniature Electric, CUB Series, 8 Digits, Reflective Display, 28 Vdc

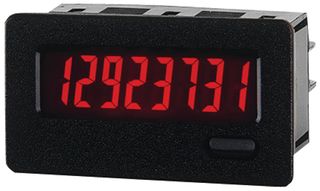

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRED LION
Manufacturer Part NoCUB7CCS0
Newark Part No.63R2606
Product RangeCUB7 Series
Technical Datasheet
172 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $97.920 |
Price for:Each
Minimum: 1
Multiple: 1
$97.92
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRED LION
Manufacturer Part NoCUB7CCS0
Newark Part No.63R2606
Product RangeCUB7 Series
Technical Datasheet
No. of Digits / Alpha8
Digit Height8.9mm
Supply Voltage Min-
Supply Voltage Max28VDC
Panel Cutout Height22.1mm
Panel Cutout Width44.96mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Product RangeCUB7 Series
SVHCNo SVHC (08-Jul-2021)
Product Overview
The CUB7CCS0 is a Miniature Electronic Counter powered by lithium battery with large 0.35-inch LCD reflective display. This CUB7 series counter is housed in a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with silicon rubber keypad meets NEMA 4X/IP65 specification for wash-down and/or dusty environments, when properly installed with supplied panel gasket and mounting clip. The keypad can be enabled/disabled via a single DIP switch.
- 8-digit LCD display
- 3-position terminal block
- Count speeds up to 10kHz
- 9 Programmable time range
- Low voltage input
- 0 to 50°C Temperature range
Applications
Industrial, Automation & Process Control, Test & Measurement
Technical Specifications
No. of Digits / Alpha
8
Supply Voltage Min
-
Panel Cutout Height
22.1mm
Operating Temperature Min
0°C
Product Range
CUB7 Series
Digit Height
8.9mm
Supply Voltage Max
28VDC
Panel Cutout Width
44.96mm
Operating Temperature Max
50°C
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
