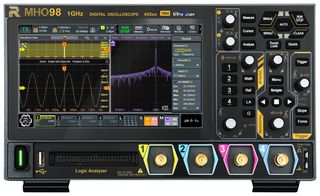

MHO98

MHO98 is a 1GHz, 4GSa/s, 100Mpts, 4 analog channel digital oscilloscope. The product supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

• Vertical sensitivity 200μV/div to 10V/div
• Maximum waveform capture rate: 1,000,000wfms/s
• Digital phosphor display with real-time 256-level intensity grading
• Supports histogram, digital signal analysis, etc
• Supports waveform search and navigation function, capable of debugging the signal anomalies faster
• 7" (1024x600) HD touch screen
• Flex knob brings user-friendly experience
• Standard USB2.0 device & host, LAN (100M), and HDMI interfaces
• Novel and delicate industrial design, easy to operate
• Supports online upgrade of software version

Contents

Digital oscilloscope, Power adapter conforming to the standard of the destination, Ground cable, USB cable, 4 passive probes(500MHz).
