NGM-COM2B

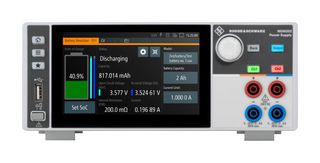

NGM-COM2B is a package containing R&S®NGM202 two-channel power supply and interface options K103 digital trigger I/O, K104 digital voltmeter functionality, K106 battery simulation. NGM202 deliver up to 60 W of output power per channel. The output channels are floating, galvanically isolated and protected against overload and short circuits. The fast recovery time of <lt/> 30 µs and minimum overshoot even during a demanding load change, the R&S®NGL200 power supplies are ideal for powering IoT devices and other battery-operated devices.

• Fast load regulation
• Minimum residual ripple and low noise
• Readings with up to 6? digit resolution
• Output stage isolated with relays
• Two quadrants: operates as source and sink
• Constant voltage, constant current and constant resistance modes
• Variable output impedance
• Protection functions to safeguard instrument and DUT
• Safety limits to safeguard the DUT

Contents

Two-channel power supply, NGM-K103 digital trigger I/O, NGM-K104 digital voltmeter functionality, NGM-K106 battery simulation, Set of power cables, quick start guide.
