FFSD-05-D-06.00-01-N

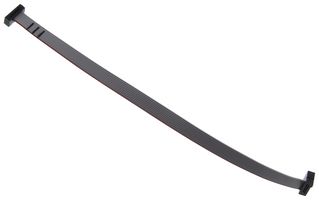

Ribbon Cable, IDC Receptacle to IDC Receptacle, 10 Positions, 6 ", 152 mm, 1.27 mm, FFSD Series
Date/Lot Code
- Manufacturer:
- SAMTEC SAMTEC
- Manufacturer Part No:
- FFSD-05-D-06.00-01-N
- Newark Part No.:
- 83K0581
- Product Range
- FFSD Series
- Technical Datasheet:
- FFSD-05-D-06.00-01-N Datasheet
Product Range Selector (FFSD Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- IDC Receptacle
- :
- IDC Receptacle to IDC Receptacle
- :
- 10Positions
- :
- IDC Receptacle
- :
- 6"
- :
- 152mm
- :
- 1.27mm
- :
- 0.635mm
- :
- FFSD Series
Technical Documents (6)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The FFSD series from Samtec are 0.050" (1.27mm) Tiger Eye™ flat IDC socket ribbon cable assemblies. These flat Tiger Eye™ IDC socket cable system features an exceptionally low profile design with a multi-finger, BeCu contact system for high reliability and high cycle applications. Optional rugged strain relief is available for a more robust connection in harsh environments as well as a variety of ejector and shrouded headers for mating. FFSD series mates with FTS 0.050" micro low profile terminal strips, FTSH 0.050" micro terminal strips, EHF 0.050" shrouded IDC ejector headers, SHF 0.050" shrouded terminal strips and ESHF 0.050" shrouded headers. These are available in various assembled length and wide variety of wiring options such as reverse wiring (RW), middle reverse (M), daisy chains (D), reverse (R), outside reverse (O) and strain relief (SR).
- All common pin counts from 3 to 25
- UL E111594 qualified
- Single ended and double ended options
- Notch polarization (notch option not available with -04 position)
- Insulator material is PBT, 30AWG wire
- 10µ" Au plating over 50µ" Ni on contact, Sn plating over 50µ" Ni on balance area
- Current rating is 2.3A per pin (1 pin powered per row) (FFSD/FTSH)
- Accepted lead size is 0.016" (0.41mm) SQ, contact resistance is 15mohm
- Operating temperature range from -40°C to +105°C
- High reliability Tiger Eye contacts
Applications
Industrial
Best Seller
449 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 5/22/23
Same day shipping
More stock available week commencing 5/22/23
×
Order before 8pm EST standard shipping
Monday to Friday excluding National Holidays
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$14.45
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | $14.45 | |
| 10+ | $13.84 | |
| 100+ | $11.44 | |
| 500+ | $9.63 | |
| 1000+ | $8.44 | |
| 2500+ | $8.01 | |
Pricing is unavailable. Please contact customer services.
