MEC6-140-02-L-D-RA1
Card Edge Connector, Dual Side, 1.57 mm, 80 Contacts, Surface Mount, Right Angle

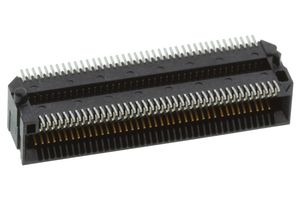

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSAMTEC
Manufacturer Part NoMEC6-140-02-L-D-RA1
Newark Part No.30AJ4539
Product RangeMEC6-RA Series
Technical Datasheet
21 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $8.600 |
| 10+ | $7.820 |
| 25+ | $7.270 |
| 100+ | $6.690 |
| 250+ | $5.680 |
| 500+ | $5.320 |
| 1000+ | $5.130 |
Price for:Each
Minimum: 1
Multiple: 1
$8.60
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSAMTEC
Manufacturer Part NoMEC6-140-02-L-D-RA1
Newark Part No.30AJ4539
Product RangeMEC6-RA Series
Technical Datasheet
Card Edge Connector TypeDual Side
Card Thickness1.57mm
Contact Plating - Mating Side10µ" Gold Plated Contacts
Product RangeMEC6-RA Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The MEC6-140-02-L-D-RA1 is a 80-pole 1mm Right Angle Socket with 10μinch (0.25μm) gold-plated phosphor bronze contacts. The MEC6-RA series socket has surface mount right angle contact termination.
- Black colour
- 1.6A Current rating
- Lead-free solderable
Technical Specifications
Card Edge Connector Type
Dual Side
Contact Plating - Mating Side
10µ" Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Card Thickness
1.57mm
Product Range
MEC6-RA Series
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
