PCIE-098-02-F-D-TH

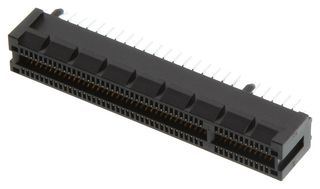

Card Edge Connector, PCIE, Dual Side, 1.57 mm, 98 Contacts, Through Hole Mount, Straight
Image is for illustrative purposes only. Please refer to product description.
2,972 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $3.470 |
| 10+ | $3.320 |
| 100+ | $2.800 |
| 500+ | $2.390 |
| 1000+ | $2.040 |
| 2500+ | $1.880 |
| 5000+ | $1.840 |
Price for:Each
Minimum: 1
Multiple: 1
$3.47
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSAMTEC
Manufacturer Part NoPCIE-098-02-F-D-TH
Newark Part No.10R0812
Technical Datasheet
Card Edge Connector TypeDual Side
Card Thickness1.57mm
No. of Contacts98 Contacts
Connector MountingThrough Hole Mount
Connector Body OrientationStraight
Contact Termination TypeSolder
Contact MaterialPhosphor Bronze
Contact Plating - Mating Side1µ" Gold Flash Plated Contacts
Connector Body MaterialNylon 6.6 (Polyamide 6.6) Body
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
PCIE-098-02-F-D-TH is a 98-pole PCI Express Card® connector with gold-plated bronze contacts. The PCIE series through-hole edge card connector is compatible with PCIEC and PCRF series connectors. While optimized for 50R applications, this connector with alternative signal/ground patterns may also perform well in certain 75R applications.
- 0.039inch pitch
- Low profile provides space savings
- PCIe® 4.0 compatible
- Accepts 0.062inch thick cards
- 2.2A current rating
