SLF3S-1300F
Liquid Flow Sensor, SLF3x Series, CMOSens, 40ml/min, 5%, Bi-Directional
Need more?
| Quantity | Price |
|---|---|
| 1+ | $151.490 |
| 5+ | $141.230 |
| 10+ | $137.400 |
| 25+ | $132.830 |
| 50+ | $129.690 |
Product Information
Product Overview

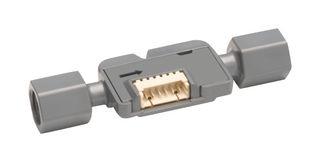

The SLF3S-1300F is Sensirion’s compact liquid flow sensor designed for high-volume applications. It enables precise and reliable measurements of dynamic liquid flow rates up to 40 ml/min bi-directionally. The SLF3S-1300F sensor features a digital interface (I2C) via a 6-pin standard electrical connector. The SLF3S-1300F builds on the latest generation CMOSens® sensor chip that is at the heart of Sensirion’s flow sensing platform and allows achieving anoutstanding performance. The patented CMOSens® technology combines the sensor element, signal processing and digital calibration on a small CMOS chip. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.
- 1/4”-28 Flat Bottom Port
- Low flow sensing up to ±40 ml/min
- Calibrated for H2O and IPA
- Temperature compensated
- Turn down ratio 200:1 or better
- Very compact and light-weight form factor
- Response time below 20 ms
Technical Specifications
Flowmeter
0.04l/min
12bar
3.8V
Liquid
UNF
Clamp Mount
50°C
No SVHC (10-Jun-2022)
-
-
3.2V
± 5%
1/4-28
-
5°C
SLF3x Series
