SC30100KT

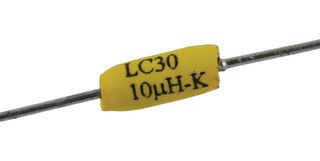

RF Choke, SC30 Series, 10 µH, 219 mA, 3.7 ohm, ± 10%, 50 MHz
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSIGMAINDUCTORS - TE CONNECTIVITY
Manufacturer Part NoSC30100KT
Newark Part No.17M9034
Product RangeSC30 Series
Technical Datasheet
1,758 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.870 |
| 10+ | $3.190 |
| 25+ | $2.950 |
| 50+ | $2.790 |
| 100+ | $2.630 |
| 500+ | $2.290 |
| 1000+ | $2.150 |
| 2500+ | $2.090 |
Price for:Each
Minimum: 1
Multiple: 1
$3.87
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSIGMAINDUCTORS - TE CONNECTIVITY
Manufacturer Part NoSC30100KT
Newark Part No.17M9034
Product RangeSC30 Series
Technical Datasheet
Product RangeSC30 Series
Inductance10µH
DC Current Rating219mA
DC Resistance Max3.7ohm
Inductance Tolerance± 10%
Self Resonant Frequency50MHz
Self Resonant Frequency Min50MHz
SVHCNo SVHC (14-Jun-2023)
Technical Specifications
Product Range
SC30 Series
DC Current Rating
219mA
Inductance Tolerance
± 10%
Self Resonant Frequency Min
50MHz
Inductance
10µH
DC Resistance Max
3.7ohm
Self Resonant Frequency
50MHz
SVHC
No SVHC (14-Jun-2023)
