HM24-1A83-02
Reed Relay, SPST-NO, 24 VDC, HM Series, Through Hole, 1 kohm, 3 A

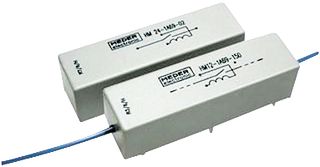

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoHM24-1A83-02
Newark Part No.97K1531
Product RangeHM
Technical Datasheet
224 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $81.580 |
| 10+ | $74.390 |
| 25+ | $67.200 |
Price for:Each
Minimum: 1
Multiple: 1
$81.58
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoHM24-1A83-02
Newark Part No.97K1531
Product RangeHM
Technical Datasheet
Contact ConfigurationSPST-NO
Coil Voltage24VDC
Product RangeHM
Relay MountingThrough Hole
Coil Resistance1kohm
Switching Current Max3A
Switching Voltage Max7.5kV
SVHCNo SVHC (17-Jan-2023)
Product Overview
The HM24-1A83-02 is a High Voltage Reed Relay with epoxy encapsulated, 1A-form (SPST-NO) contact. This HM-series relay for PCB mounting suitable for switching up to 10kVDC and breakdown voltage up to 15kVDC, 2-pin out and through hole terminals. Replacement for mercury wetted relay.
- 2VDC Drop-out voltage
- 576mW Typical nominal coil power
- 3ms Operate and 1.5ms release maximum time
- -20 to 70°C Operating temperature range
Applications
Test & Measurement, Medical
Technical Specifications
Contact Configuration
SPST-NO
Product Range
HM
Coil Resistance
1kohm
Switching Voltage Max
7.5kV
Coil Voltage
24VDC
Relay Mounting
Through Hole
Switching Current Max
3A
SVHC
No SVHC (17-Jan-2023)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
