MK11/M8-1A85C-500W
Reed Switch, MK11 Series, M8, SPST-NO, 100 W, 400 Vac/dc, 1 A, 15 to 20 AT

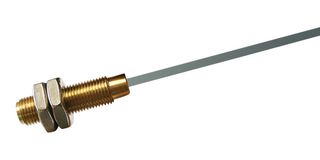

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK11/M8-1A85C-500W
Newark Part No.31Y2654
Product RangeMK11 Series
Technical Datasheet
227 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.550 |
Price for:Each
Minimum: 1
Multiple: 1
$5.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK11/M8-1A85C-500W
Newark Part No.31Y2654
Product RangeMK11 Series
Technical Datasheet
Sensor TypeReed Sensor
Sensing Distance Max-
Sensor MountingPanel Mount
Supply Current1A
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product RangeMK11 Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The MK11 series stainless steel Reed Sensor supplied in a cylindrically shaped housing with cable terminals. Used in position, level and end limit detection with convenient sensing adjustment. The series features optional internal switch, cable, length and termination.
- 10/100W Rated power (maximum)
- 0.5/1A Switching current maximum
- 150mΩ Contact resistance (maximum)
- 0.05/1.5ms Release time
- 109/1010Ω Insulation resistance
- 1A (SPST) (N.O.), 1B (SPST) (N.C.), 1C (SPDT) Changeover contact form
Technical Specifications
Sensor Type
Reed Sensor
Sensor Mounting
Panel Mount
Operating Temperature Min
-30°C
Product Range
MK11 Series
Sensing Distance Max
-
Supply Current
1A
Operating Temperature Max
85°C
SVHC
No SVHC (17-Jan-2023)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
