MK4-1A66B-500W
Reed Switch, MK04 Series, Panel Mount, 15 mm, SPST-NO, 10 W, 200 Vac/dc, 1.25 A, 10 to 15 AT

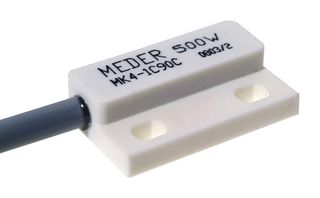

Image is for illustrative purposes only. Please refer to product description.
339 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.100 |
| 10+ | $2.100 |
| 25+ | $2.100 |
| 50+ | $2.100 |
| 100+ | $2.100 |
| 250+ | $2.100 |
| 500+ | $2.100 |
| 1000+ | $2.100 |
Price for:Each
Minimum: 1
Multiple: 1
$2.10
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK4-1A66B-500W
Newark Part No.97K5126
Technical Datasheet
Sensor TypeReed Sensor
Sensing Range Max15mm
Sensing Distance Max15mm
Sensor MountingFlange
Supply Current1.25A
Operating Temperature Min-20°C
Operating Temperature Max85°C
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The MK4-1A66B-500W is a Reed Sensor, magnetically operated reed proximity switches designed for screw mounting. The sensor should be mounted on a fixed surface with the actuating magnet on the moving surface. Introduction or removal of the magnetic field determines the closing and opening of the reed switch. Used in door & window contacts, with magnetic floats for water level detection, position sensing.
- -20 to 85°C Operating temperature
Technical Specifications
Sensor Type
Reed Sensor
Sensing Distance Max
15mm
Supply Current
1.25A
Operating Temperature Max
85°C
SVHC
No SVHC (17-Jan-2023)
Sensing Range Max
15mm
Sensor Mounting
Flange
Operating Temperature Min
-20°C
Product Range
-
Technical Docs (1)
Alternatives for MK4-1A66B-500W
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
