Product Information
ManufacturerSTAUBLI
Manufacturer Part No32.0011P0001
Newark Part No.78R5584
Product RangeMC4
Technical Datasheet
Photovoltaic / Solar Connector TypeMale Cable Coupler
Keying-
Connector MountingCable Mount
IP RatingIP65, IP68
IP RatingIP65, IP68
Wire Size AWG Max14AWG
Current Rating22A
Voltage Rating1kV
Product RangeMC4
SVHCNo SVHC (23-Jan-2024)
Product Overview

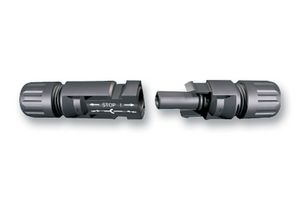

The MC4 series female and male Cable Coupler locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool. Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector.
- Snap-in locking
- Tried and tested plug connectors, 12 years of experience in the field
- Available for assembly with cross-sections of 10mm²
- Also available as readymade leads
- Leads made to customer's specifications
Applications
Industrial
Technical Specifications
Photovoltaic / Solar Connector Type
Male Cable Coupler
Connector Mounting
Cable Mount
IP Rating
IP65, IP68
Current Rating
22A
Product Range
MC4
Keying
-
IP Rating
IP65, IP68
Wire Size AWG Max
14AWG
Voltage Rating
1kV
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
