SD2942
RF FET Transistor, 130 V, 40 A, 500 W, M244

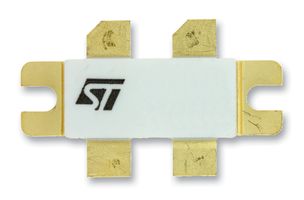

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 55 week(s)
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSD2942
Newark Part No.37M5862
Technical Datasheet
Drain Source Voltage Vds130V
Continuous Drain Current Id40A
Power Dissipation500W
Power Dissipation Pd500W
Operating Frequency Min-
Operating Frequency Max-
Transistor Case StyleM244
No. of Pins3Pins
RF Transistor CaseM244
Operating Temperature Max-
Channel TypeN Channel
Transistor MountingFlange
Product Range-
MSL-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Drain Source Voltage Vds
130V
Power Dissipation
500W
Operating Frequency Min
-
Transistor Case Style
M244
RF Transistor Case
M244
Channel Type
N Channel
Product Range
-
SVHC
No SVHC (21-Jan-2025)
Continuous Drain Current Id
40A
Power Dissipation Pd
500W
Operating Frequency Max
-
No. of Pins
3Pins
Operating Temperature Max
-
Transistor Mounting
Flange
MSL
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
