05CL3MX
DIN Audio / Video Connector, 3 Contacts, Plug, Cable Mount, Solder, Tin Plated Contacts, Metal Body

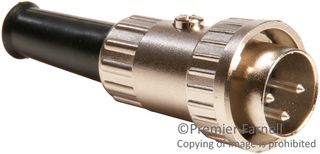

Image is for illustrative purposes only. Please refer to product description.
619 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $14.330 |
| 10+ | $11.620 |
| 25+ | $10.840 |
| 100+ | $10.150 |
Price for:Each
Minimum: 1
Multiple: 1
$14.33
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No05CL3MX
Newark Part No.89K7638
Technical Datasheet
No. of Contacts3Contacts
Connector MountingCable Mount
Contact TerminationSolder
Contact PlatingTin Plated Contacts
Connector Body MaterialMetal Body
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 05CL3MX is a 3-conductor cable-mount Locking DIN Male Connector with ground key-rib. Unique 30° turn locking securely fastens two halves of connector. It mates with lock flange female connectors and receptacles. Insert screw holds insert assembly in shell and also retains locking on shell. Flexible black strain relief with 7/32-inch diameter cable entry. It has nickel-plated die-cast zinc alloy shell, steel receptacle mounting flange, plastic receptacle body and insert, tin-plated contacts, silver-plated switching contacts and soft plastic cable relief bushing.
- 10⁵MΩ Leakage resistance
- 22AWG Maximum wire size
Applications
Audio, Imaging, Video & Vision
Technical Specifications
No. of Contacts
3Contacts
Connector Mounting
Cable Mount
Contact Plating
Tin Plated Contacts
Product Range
-
Gender
Plug
Contact Termination
Solder
Connector Body Material
Metal Body
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Alternatives for 05CL3MX
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
