05CL5MX
DIN Audio / Video Connector, 5 Contacts, Plug, Cable Mount, Solder, Tin Plated Contacts, Metal Body

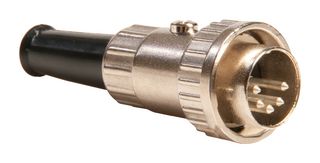

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 100+ | $13.420 |
Price for:Each
Minimum: 100
Multiple: 25
$1,342.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No05CL5MX
Newark Part No.89K7639
Technical Datasheet
No. of Contacts5Contacts
Connector MountingCable Mount
Contact TerminationSolder
Contact PlatingTin Plated Contacts
Connector Body MaterialMetal Body
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 05CL5MX is a 5-contact cable-mount DIN Plug with ground key-rib. It has nickel-plated die-cast zinc alloy shell, tin-plated pins and plastic insert. It mates with lock flange female connectors and receptacles. Insert screw holds insert assembly in shell and also retains lock ring on shell. It features the flexible black strain-relief with 7/32-inch diameter cable entry.
- 500Vrms Dielectric withstanding voltage
- 10⁵MΩ Leakage resistance
Applications
Audio, Imaging, Video & Vision
Technical Specifications
No. of Contacts
5Contacts
Connector Mounting
Cable Mount
Contact Plating
Tin Plated Contacts
Product Range
-
Gender
Plug
Contact Termination
Solder
Connector Body Material
Metal Body
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
