112BX
Phone Audio Connector, 3 Contacts, Jack, 6.35 mm, Panel Mount

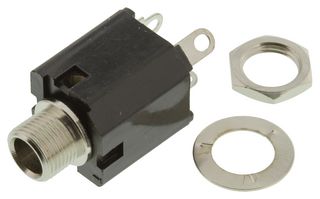

Image is for illustrative purposes only. Please refer to product description.
270 In Stock
1,000 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.260 |
| 10+ | $2.710 |
| 25+ | $2.510 |
| 50+ | $2.440 |
| 100+ | $2.350 |
Price for:Each
Minimum: 1
Multiple: 1
$3.26
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No112BX
Newark Part No.89K7645
Technical Datasheet
No. of Contacts3Contacts
GenderJack
Pin Diameter6.35mm
Connector MountingPanel Mount
Contact Plating-
Connector Body Material-
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 112BX is a 3-conatct panel-mount enclosed Phone Jack with tin-plated integral contacts. The jack is made with the molded thermoplastic housing and tin-plated steel sleeve terminal. Unitized molded housing protects springs and provides mechanical and electrical reliability, minimizes leakage and provides low capacity between springs. It mounts on 0.625-inch minimum centers in rows or arrays. Insulated Hi-D Jax® jack is specifically designed for in-circuit (insulated) mounting from mounting surface and has fully protected enclosed internal sleeve feature.
- 10000 Minimum insertion/withdrawal cycles life
- 60Hz at 500VACrms Dielectric withstanding voltage
- UL94V-0 Flammability rating
- Made in the USA
Applications
Audio, Commercial
Technical Specifications
No. of Contacts
3Contacts
Pin Diameter
6.35mm
Contact Plating
-
Product Range
-
Gender
Jack
Connector Mounting
Panel Mount
Connector Body Material
-
SVHC
No SVHC (17-Jan-2022)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
