13EL5FX
DIN Audio / Video Connector, 5 Contacts, Jack, Cable Mount, Solder, Tin Plated Contacts, Metal Body

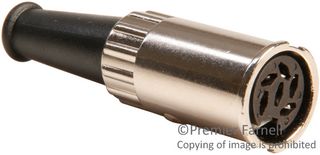

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
| Quantity | Price |
|---|---|
| 100+ | $12.530 |
Price for:Each
Minimum: 1000
Multiple: 1
$12,530.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No13EL5FX
Newark Part No.89K7650
Technical Datasheet
No. of Contacts5Contacts
GenderJack
Connector MountingCable Mount
Contact TerminationSolder
Contact PlatingTin Plated Contacts
Connector Body MaterialMetal Body
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 13EL5FX is a 5-conductor DIN Female Plug with tin-plated contacts. Unique 30° turn locking securely fastens two halves of the connector. It mates with lock flange female connectors and receptacles. Insert screw holds insert assembly in shell and also retains locking on shell. The flexible black strain relief with 7/32-inch diameter cable entry. It is made up of nickel-plated die-cast zinc alloy shell, steel receptacle mounting flange receptacle plastic body and insert, silver-plated switching contacts and soft plastic cable relief bushing.
- Heavy duty clamp
- 22AWG Maximum wire size
- Made in the USA
Applications
Audio
Technical Specifications
No. of Contacts
5Contacts
Connector Mounting
Cable Mount
Contact Plating
Tin Plated Contacts
Product Range
-
Gender
Jack
Contact Termination
Solder
Connector Body Material
Metal Body
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
