2337098-1

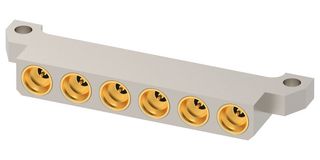

RF / Coaxial Connector, SMPS Coaxial, Edge Launch Jack, Board Edge / End Launch, 50 ohm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No2337098-1
Newark Part No.90AJ5258
Product RangeNanoRF Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 30 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $1,101.360 |
| 3+ | $986.440 |
| 5+ | $871.500 |
| 10+ | $756.580 |
Price for:Each
Minimum: 1
Multiple: 1
$1,101.36
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2337098-1
Newark Part No.90AJ5258
Product RangeNanoRF Series
Technical Datasheet
Connector TypeSMPS Coaxial
Connector Body StyleEdge Launch Jack
Coaxial TerminationBoard Edge / End Launch
Impedance50ohm
Coaxial Cable Type-
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Frequency Max-
Connector MountingPCB Mount
Product RangeNanoRF Series
SVHCLead
Technical Specifications
Connector Type
SMPS Coaxial
Coaxial Termination
Board Edge / End Launch
Coaxial Cable Type
-
Contact Plating
Gold Plated Contacts
Connector Mounting
PCB Mount
SVHC
Lead
Connector Body Style
Edge Launch Jack
Impedance
50ohm
Contact Material
Copper Alloy
Frequency Max
-
Product Range
NanoRF Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
