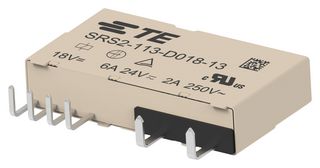

SRS2-113-D018-13

SRS2-113-D018-13 is a SRS2 force guided relay (IEC/EN61810-3 type A) for safety applications with limited space. The just 210mW coil power consumption helps allow a dense arrangement in hot environments. The NO contact can switch 2A/ 250V AC or 6A/ 24V AC/DC and is linked to a monitoring NC contact with a diagnostic coverage of 99% (IEC 61508-2). Applications include safety relay modules, safety controllers, programmable logic controllers (PLC’s), machines, presses, robots, emergency shut-off, light barriers, elevator and escalator safety control, railway level crossings and signaling.

• Slim 2 pole relay with force guided relay according to type A of IEC/EN 61810-3 (EN50205)
• 1 form A (NO) + 1 form B (NC) contacts
• 1.1inch x 0.23inch x 0.61inch small size
• Polarized magnet system with small coil power consumption (210mW)
• Reinforced insulation between NO and NC–circuit and between NO and relay coil
• Horizontal - pin bent inwards
