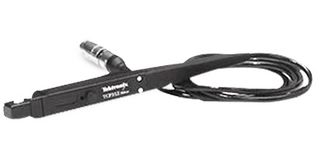

TCP312A

TCP312A is an AC/DC current probe that supports DC - 100MHz, 30A DC. The TCPA300 amplifier, when used with TCP312A probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 ohm, non-compatible probe type. The TCP300 series AC/DC current measurement family is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (with TCA-BNC) or TekVPI (with TPA-BNC) interfaces, current measurements and calculations are simple and easy.

• AC/DC input coupling
• Low insertion impedance reduces device under test loading
• Split-core construction allows easy circuit connection
• Status indicators provide visual operating status and notification of potential error conditions
• Low DC drift and noise allows improved low-level current measurements
• 3rd party safety certification

Notes

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
