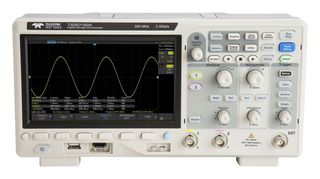

T3DSO1202A

T3DSO1202A is a 200MHz bandwidth, two channels digital signal oscilloscope. When all channels are enabled, each channel has sample rate of 1GS/s and a standard record length of 14Mptss. When only a single channel per ADC is active, the maximum sample rate and the maximum record length are doubled. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.

• 7" bright TFT LCD (800 x 480) display
• 7 basic math functions plus FFT and 38 automatic measurement parameters
• Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included
• History waveform record (History) function, maximum recorded waveform length is 80,000 frames
• Waveform capture rate up to 100,000wfm/s (normal mode), and 400,000wfm/s (sequence mode)
• Supports 256-level intensity grading and color display modes
• USB Host, USB Device, LAN connectivity
• Intelligent trigger: edge, slope, pulse width, window, runt, interval, time out (dropout), pattern
• Video trigger supports HDTV, low background noise with voltage scales from 500 μV/div to 10 V/div
• Dimension is length: 12.28inch / width: 5.22inch / height: 5.94inch

Contents

DSO, 2 x 200MHz passive probes, USB cable x1, Quick start x1, Standard passive probe appropriate to the oscilloscope bandwidth x4 / 2, Certification x1, Power cord x1.
