72-7635
Digital Oscilloscope, 2 Channel, 300 MHz, 2 GSPS, 16 Mpts, 1.2 ns

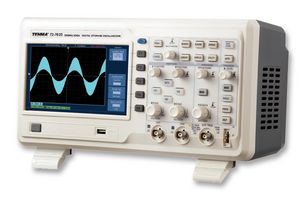

Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerTENMA
Manufacturer Part No72-7635
Newark Part No.52Y8797
Technical Datasheet
Product Range-
Scope Channels2 Channel
Bandwidth300MHz
Sampling Rate2GSPS
Display Memory Depth16 Mpts
Calculated Rise Time1.2ns
Scope Display TypeLCD Color
Kit ContentsProbe x 2 (1x, 10x Switchable), Power Cord , USB Cable, PC Software CD
Manufacturer Warranty-
Plug TypeUS
SVHCNo SVHC (19-Jan-2021)
Product Overview
- 2 Analogue channels
- 800x480, 7" Widescreen LCD display
- Print screen feature
- 24 Automatic and 2 advanced measurements
- Unique waveform recording and replay function
- 6 Digital trigger frequency counter
- 6 Digital trigger frequency counter
- USB drive system software upgrade
- 24 month limited warranty *view Terms & Conditions for details
Technical Specifications
Product Range
-
Bandwidth
300MHz
Display Memory Depth
16 Mpts
Scope Display Type
LCD Color
Manufacturer Warranty
-
SVHC
No SVHC (19-Jan-2021)
Scope Channels
2 Channel
Sampling Rate
2GSPS
Calculated Rise Time
1.2ns
Kit Contents
Probe x 2 (1x, 10x Switchable), Power Cord , USB Cable, PC Software CD
Plug Type
US
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
