TML 100-124C
AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 100 W, 24 VDC, 4.2 A

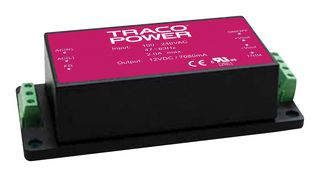

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRACO POWER
Manufacturer Part NoTML 100-124C
Newark Part No.95W3728
Product RangeTML 100C Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
| Quantity | Price |
|---|---|
| 1+ | $211.590 |
Price for:Each
Minimum: 1
Multiple: 1
$211.59
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTRACO POWER
Manufacturer Part NoTML 100-124C
Newark Part No.95W3728
Product RangeTML 100C Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs1Outputs
Output Power Max100W
Output Voltage - Output 124VDC
Output Current - Output 14.2A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Output Voltage - Output 4-
Output Current - Output 4-
Input Voltage VAC100V AC to 240V AC
Power Supply Output TypeFixed
Product RangeTML 100C Series
SVHCNo SVHC (14-Jun-2023)
Product Overview
TML 100-124C is a 100W TML 100C series AC/DC power supply in a fully encapsulated plastic case. Active power factor correction and high efficiency across the full load range qualify this module for installation in energy-related products. This features screw terminals for easy installation. This is accompanied by an international safety approval package for worldwide markets. It includes overvoltage, short circuit protection. Approved by IEC/EN 60950-1, UL 60950-1, IEC/EN 62368-1, UL 62368-1.
- Nominal input voltage range from 100 to 240VAC (universal input), output voltage is 24VDC
- Maximum output current is 4200mA, efficiency is 92%
- Very compact power modules with screw terminal connection
- Active PFC, power factor <gt/>0.95 (230VAC), <gt/>0.99 (115VAC)
- High efficiency, remote on/off input
- Adjustable output voltage ±5%, LED output indicator
- Low leakage current, EMI meets EN 55032, class B, protection class I and class ll prepared
- Switching frequency range from 100 to 133KHz (pulse width modulation PWM)
- Plastic resin + fiberglass (UL 94V-0 rated) casing material
- Operating temperature range from -25 to 70°C, 5.51inch length, 2.44inch width, 1.44inch depth
Technical Specifications
Power Supply Applications
ITE
Output Power Max
100W
Output Current - Output 1
4.2A
Output Current - Output 2
-
Output Current - Output 3
-
Output Current - Output 4
-
Power Supply Output Type
Fixed
SVHC
No SVHC (14-Jun-2023)
No. of Outputs
1Outputs
Output Voltage - Output 1
24VDC
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 4
-
Input Voltage VAC
100V AC to 240V AC
Product Range
TML 100C Series
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
