PL75-47
RF / Coaxial Connector, M17/176-00002 Cable, Twinax TRB, Straight Plug, Crimp, M17/176-00002, Brass

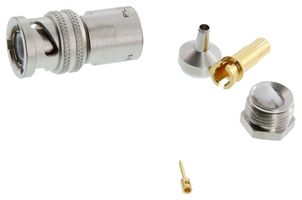

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTROMPETER - CINCH CONNECTIVITY
Manufacturer Part NoPL75-47
Newark Part No.48F2788
Technical Datasheet
1,597 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $16.870 |
| 10+ | $15.440 |
| 25+ | $14.540 |
| 50+ | $13.730 |
Price for:Each
Minimum: 1
Multiple: 1
$16.87
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTROMPETER - CINCH CONNECTIVITY
Manufacturer Part NoPL75-47
Newark Part No.48F2788
Technical Datasheet
Connector TypeTwinax TRB
Connector Body StyleStraight Plug
Coaxial TerminationCrimp
Impedance-
Coaxial Cable TypesM17/176-00002
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Frequency Max500MHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview
The PL75-47 is a Twinax Straight Plug, designed with two (2) concentric contacts that are isolated from each other and the shielding connection. It is ideal for applications where weight is not a primary concern. Heat-treated, beryllium-copper center socket contacts with 50μinch gold plating.
- Top quality brass body with bright nickel-plated non-tarnish finish
- Fully enclosed, heat-treated, beryllium-copper outer conductor spring
Applications
RF Communications, Defence, Military & Aerospace
Technical Specifications
Connector Type
Twinax TRB
Coaxial Termination
Crimp
Coaxial Cable Types
M17/176-00002
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Straight Plug
Impedance
-
Contact Material
Brass
Frequency Max
500MHz
Product Range
-
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
