9HT10-32.768KDZY-T
Crystal, Surface Mount, 32.768 kHz, SMD, 3.2mm x 1.5mm, 7 pF, 20 ppm, 9HT10 Series

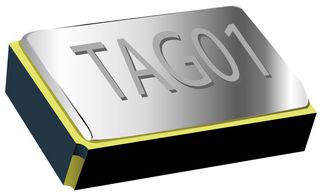

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTXC
Manufacturer Part No9HT10-32.768KDZY-T
Newark Part No.52T7218
Product Range9HT10 Series
Your Part Number
Technical Datasheet
2,675 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.768 |
| 25+ | $0.680 |
| 50+ | $0.637 |
| 100+ | $0.618 |
| 250+ | $0.615 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.77
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTXC
Manufacturer Part No9HT10-32.768KDZY-T
Newark Part No.52T7218
Product Range9HT10 Series
Technical Datasheet
Frequency Nom32.768kHz
Crystal CaseSMD, 3.2mm x 1.5mm
Frequency Stability + / --
Load Capacitance7pF
Frequency Tolerance + / -20ppm
Product Range9HT10 Series
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Ceramic surface mount package
- Applications in mobile phone, Notebook and DSC
Technical Specifications
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
20ppm
Operating Temperature Min
-40°C
SVHC
No SVHC (21-Jan-2025)
Crystal Case
SMD, 3.2mm x 1.5mm
Load Capacitance
7pF
Product Range
9HT10 Series
Operating Temperature Max
85°C
