2191QL1-24V
LED Panel Mount Indicator, Red, 24 V, 7.87 mm, Not Rated
.jpg){kind=logo}
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No2191QL1-24V
Newark Part No.93K6763
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $9.240 |
| 10+ | $6.450 |
| 25+ | $6.020 |
| 50+ | $5.600 |
| 100+ | $5.180 |
| 300+ | $5.070 |
| 500+ | $4.950 |
Price for:Each
Minimum: 1
Multiple: 1
$9.24
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No2191QL1-24V
Newark Part No.93K6763
Technical Datasheet
LED ColorRed
Operating Voltage24V
Mounting Hole Dia7.87mm
Forward Current If-
Luminous Intensity-
IP / NEMA RatingNot Rated
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview

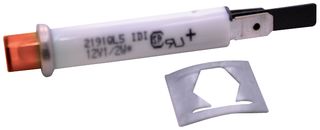

The 2191QL1-24V is a red non-relampable LED Solid-State Indicator Light with white nylon housing and polycarbonate lens. The 2191QL series solid-state indicator lights complete with built-in current limiting resistor and rectifier diode. It features quick-connect, tinned brass 0.187 x 0.02 terminals and 0.31 minimum diameter mounting, supplied with push-on speed-nut SN1287.
- Polished stainless steel bezel
- Marked above terminal anode (+)
Applications
LED Lighting
Technical Specifications
LED Color
Red
Mounting Hole Dia
7.87mm
Luminous Intensity
-
Product Range
-
Operating Voltage
24V
Forward Current If
-
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
