2191QL5-24V
LED Panel Mount Indicator, Green, 24 V, 7.87 mm, Not Rated
.jpg){kind=logo}

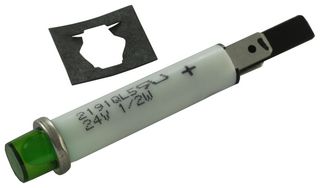

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No2191QL5-24V
Newark Part No.16M0460
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $9.260 |
| 10+ | $6.750 |
| 25+ | $6.360 |
| 50+ | $5.970 |
| 100+ | $5.590 |
| 300+ | $5.400 |
| 500+ | $5.210 |
Price for:Each
Minimum: 1
Multiple: 1
$9.26
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No2191QL5-24V
Newark Part No.16M0460
Technical Datasheet
LED ColorGreen
Operating Voltage24V
Mounting Hole Dia7.87mm
Forward Current If-
Luminous Intensity-
IP / NEMA RatingNot Rated
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 2191QL5-24V is a 24V non-relampable solid-state green LED Indicator Light complete with 1000Ω built-in current-limiting resistor and rectifier diode. The green lens incorporates 4304H5 LED. The 2191QL series LED indicator with 0.310-inch mounting hole and 0.187 x 0.020-inch tinned brass quick-connect terminals. Lens is made of polycarbonate with polished stainless steel bezel and white nylon housing.
- Anode(+) Marked above terminal
Applications
LED Lighting
Technical Specifications
LED Color
Green
Mounting Hole Dia
7.87mm
Luminous Intensity
-
Product Range
-
Operating Voltage
24V
Forward Current If
-
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
