ILSB1206ER100K
Multilayer Inductor, 10 µH, 1 ohm, 28 MHz, 25 mA, 1206 [3216 Metric], ILSB-1206 Series

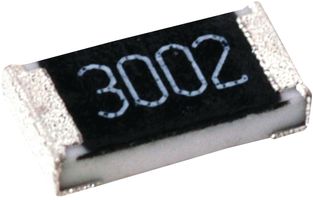

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoILSB1206ER100K
Newark Part No.02M8730
Product RangeILSB-1206 Series
Technical Datasheet
1,994 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.168 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.17
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoILSB1206ER100K
Newark Part No.02M8730
Product RangeILSB-1206 Series
Technical Datasheet
Inductance10µH
Product RangeILSB-1206 Series
DC Resistance Max1ohm
Self Resonant Frequency28MHz
DC Current Rating25mA
Inductor Case Style1206 [3216 Metric]
Inductor ConstructionShielded
Inductor Case / Package1206 [3216 Metric]
Inductance Tolerance± 10%
Core MaterialFerrite
Product Length3.2mm
Product Width1.6mm
Product Height1.1mm
SVHCNo SVHC (07-Nov-2024)
Technical Specifications
Inductance
10µH
DC Resistance Max
1ohm
DC Current Rating
25mA
Inductor Construction
Shielded
Inductance Tolerance
± 10%
Product Length
3.2mm
Product Height
1.1mm
Product Range
ILSB-1206 Series
Self Resonant Frequency
28MHz
Inductor Case Style
1206 [3216 Metric]
Inductor Case / Package
1206 [3216 Metric]
Core Material
Ferrite
Product Width
1.6mm
SVHC
No SVHC (07-Nov-2024)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
