TCLT1109
Optocoupler, Transistor Output, 1 Channel, SOP, 5 Pins, 60 mA, 5 kV, 200 %

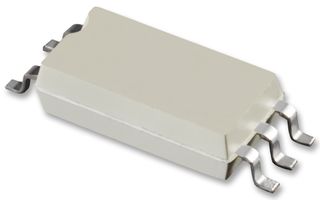

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
| Quantity | Price |
|---|---|
| 1+ | $0.557 |
| 10+ | $0.388 |
| 25+ | $0.354 |
| 50+ | $0.321 |
| 100+ | $0.287 |
| 250+ | $0.265 |
| 500+ | $0.245 |
| 1000+ | $0.227 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.56
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
The TCLT1109 is a 1-channel 5-pin Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It is suitable for microprocessor system interface.
- Special construction
- Extra low coupling capacitance
- Connected base
- DC input with transistor output
- <gt/>8mm Creepage distance
- 6V Reverse voltage
Applications
Power Management, Computers & Computer Peripherals, Industrial
Technical Specifications
No. of Channels
1 Channel
No. of Pins
5Pins
Isolation Voltage
5kV
Collector Emitter Voltage V(br)ceo
70V
SVHC
No SVHC (07-Nov-2024)
Optocoupler Case Style
SOP
Forward Current If Max
60mA
CTR Min
200%
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
