WL-2191U5-12V
LED Panel Mount Indicator, Chrome Bezel, Green, 14 VDC, 7.87 mm, 20 mA, Not Rated

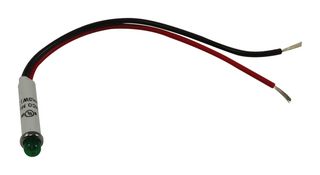

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
| Quantity | Price |
|---|---|
| 250+ | $4.170 |
| 500+ | $3.630 |
| 1000+ | $3.420 |
Price for:Each
Minimum: 300
Multiple: 300
$1,251.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The WL-2191U5-12V is a green non-relampable panel-mount LED Indicator made of white nylon body with polycarbonate lens and chrome bezel.
- ±10% Voltage tolerance
- 6" Leads with 1/2" strip are standard
- 100000-hour Rated life
Applications
Industrial, Signalling
Technical Specifications
LED Color
Green
Mounting Hole Dia
7.87mm
Luminous Intensity
-
Product Range
-
Operating Voltage
14VDC
Forward Current If
20mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
