1608660000
DIN Rail Mount Terminal Block, 2 Positions, 30 AWG, 12 AWG, 4 mm², Clamp, 8 A

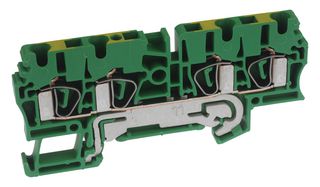

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWEIDMULLER
Manufacturer Part No1608660000
Newark Part No.32M7215
Product RangeZ Series
Also Known AsZPE 2.5/4AN
Technical Datasheet
724 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $11.210 |
| 10+ | $8.910 |
| 25+ | $8.480 |
| 50+ | $7.720 |
| 100+ | $7.440 |
| 250+ | $6.610 |
| 500+ | $6.140 |
| 1000+ | $5.740 |
Price for:Each
Minimum: 1
Multiple: 1
$11.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWEIDMULLER
Manufacturer Part No1608660000
Newark Part No.32M7215
Product RangeZ Series
Also Known AsZPE 2.5/4AN
Technical Datasheet
No. of Positions2Positions
Wire Size AWG Min30AWG
Wire Size AWG Max12AWG
Conductor Area CSA4mm²
Wire Connection MethodClamp
Rated Current8A
Rated Voltage800V
No. of Levels1
Product RangeZ Series
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 1608660000 is a 2-way Modular PE Conductor Terminal made of WEMID. The ZPE 2.5/4AN terminal accepts 30 to 12AWG wire. Less space, spacious labeling area, integrated test point, cross-connection functionality within the Z series and other Weidmüller terminal lines. The Z-series terminals have a large clamping range and one or two cross-connection slots.
- Green/yellow color
- UL94V-0 Flammability rating
- Snap-on mounting
- 3 Pollution severity
- Explosion-tested
Applications
Industrial
Technical Specifications
No. of Positions
2Positions
Wire Size AWG Max
12AWG
Wire Connection Method
Clamp
Rated Voltage
800V
Product Range
Z Series
Wire Size AWG Min
30AWG
Conductor Area CSA
4mm²
Rated Current
8A
No. of Levels
1
SVHC
No SVHC (23-Jan-2024)
