4061630000
Power Relay, SPDT, 60 VDC, 6 A, TERM Series, DIN Rail

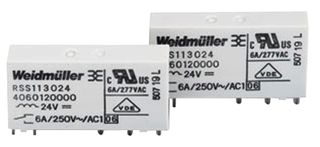

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWEIDMULLER
Manufacturer Part No4061630000
Newark Part No.83H5569
Product RangeTERM Series
Technical Datasheet
38 In Stock
40 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $19.670 |
| 10+ | $18.740 |
| 25+ | $17.990 |
| 50+ | $16.410 |
| 100+ | $15.380 |
| 250+ | $14.350 |
| 500+ | $13.780 |
Price for:Each
Minimum: 1
Multiple: 1
$19.67
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWEIDMULLER
Manufacturer Part No4061630000
Newark Part No.83H5569
Product RangeTERM Series
Technical Datasheet
Contact ConfigurationSPDT
Coil Voltage60VDC
Contact Current6A
Product RangeTERM Series
Relay MountingDIN Rail
Coil Type-
Contact Voltage VAC250VAC
Relay TypePower - General Purpose
Relay TerminalsScrew
Contact Voltage VDC250VDC
Contact MaterialSilver Nickel
Coil Resistance-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The 4061630000 is a general-purpose Power Relay with SPDT silver nickel contact. This TERM-series DIN-rail mount power relay has screw terminals and plug-in connection.
- 180mW Power rating
- 3VDC Typical drop-out voltage
- UL94V-0 Flammability rating
- IP67 Protection rating
- -40 to 85°C Operating temperature range
Applications
Industrial
Contents
Spare relay, Base, Partition plates, Cross-connections and Power-feed modules.
Technical Specifications
Contact Configuration
SPDT
Contact Current
6A
Relay Mounting
DIN Rail
Contact Voltage VAC
250VAC
Relay Terminals
Screw
Contact Material
Silver Nickel
SVHC
No SVHC (17-Jan-2023)
Coil Voltage
60VDC
Product Range
TERM Series
Coil Type
-
Relay Type
Power - General Purpose
Contact Voltage VDC
250VDC
Coil Resistance
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
