8700 010250
Coaxial Cable, Miniature, RGMini, 28 AWG, 32 ohm, 250 ft, 76.2 m

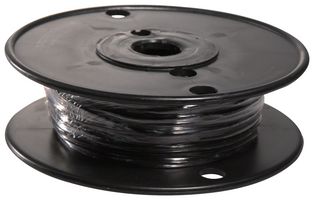

Image is for illustrative purposes only. Please refer to product description.
10,750 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $715.680 |
| 5+ | $670.950 |
| 10+ | $626.220 |
| 25+ | $581.490 |
Price for:Spool of 250
Minimum: 1
Multiple: 1
$715.68
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part No8700 010250
Newark Part No.02F4159
Technical Datasheet
Coaxial Cable TypeRGMini
Wire Gauge28AWG
Conductor Area CSA-
Impedance32ohm
Reel Length (Imperial)250ft
Reel Length (Metric)76.2m
Jacket ColorBlack
Jacket MaterialPVC
Conductor MaterialTinned Copper
No. of Max Strands x Strand SizeSolid
External Diameter1.37mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Product Overview
The 8700 010250 is a Coaxial Cable with 28AWG solid tinned copper conductor and a polypropylene insulation. This miniature coax cable comes with a black PVC jacket and bare copper braid shield (90% coverage). The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- 7lbs Maximum recommended pulling tension
- 0.049µH/ft Nominal inductance
- 66% Nominal velocity of propagation
- 66.9Ω/ft at 20°C Nominal conductor DC resistance (DCR)
- -30 to 105°C Operating temperature range
Applications
Communications & Networking
Technical Specifications
Coaxial Cable Type
RGMini
Conductor Area CSA
-
Reel Length (Imperial)
250ft
Jacket Color
Black
Conductor Material
Tinned Copper
External Diameter
1.37mm
SVHC
No SVHC (10-Jun-2022)
Wire Gauge
28AWG
Impedance
32ohm
Reel Length (Metric)
76.2m
Jacket Material
PVC
No. of Max Strands x Strand Size
Solid
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
