SRR6028-102Y
Power Inductor (SMD), 1 mH, 150 mA, Shielded, 170 mA, SRR6028 Series

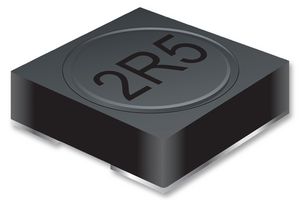

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part NoSRR6028-102Y
Newark Part No.71AC4854
Product RangeSRR6028 Series
Technical Datasheet
305 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $0.446 |
| 10+ | $0.409 |
| 25+ | $0.408 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.45
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBOURNS
Manufacturer Part NoSRR6028-102Y
Newark Part No.71AC4854
Product RangeSRR6028 Series
Technical Datasheet
Inductance1mH
RMS Current (Irms)150mA
Inductor ConstructionShielded
Product RangeSRR6028 Series
Saturation Current (Isat)170mA
Power Inductor Case6.8mm x 6.8mm x 2.8mm
Inductor Case / Package-
Inductance Tolerance± 30%
DC Resistance Max4.5ohm
Product Length6.8mm
Product Width6.8mm
Product Height2.8mm
Technical Specifications
Inductance
1mH
Inductor Construction
Shielded
Saturation Current (Isat)
170mA
Inductor Case / Package
-
DC Resistance Max
4.5ohm
Product Width
6.8mm
SVHC
No SVHC (25-Jun-2025)
RMS Current (Irms)
150mA
Product Range
SRR6028 Series
Power Inductor Case
6.8mm x 6.8mm x 2.8mm
Inductance Tolerance
± 30%
Product Length
6.8mm
Product Height
2.8mm
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
